StarWalker® PQX

Third-generation ASP-powered technology for ultra performance:

Highest pico power & energy
Shortest pico pulse width
Wide range of laser wavelengths
Exceptional spot size capabilities
Largest fluence spectrum for flat-top handpieces
Patented FracTAT® treatments for scars, pigments and rejuvenation
Smallest footprint
No consumables

Key Features:

Enhanced safety with automatic handpiece and spot-size detection
User-friendly application wizards for recommended parameters
Integrated treatment history and patient database
Patented light-weight OPTOflex® arm
Color-coded, medical-grade titanium handpieces

StarWalker® PQX specifications:

Wavelength	1064 nm; 532 nm
Max. Energy	800 mJ
Min. Pulse duration	300 psec
Max. Peak Power	2.7 GW
Pulse repetition frequency	0.5 to 10 Hz

StarWalker® PQX Indications

Pigmentation disorders
Rejuvenation
Toning
Scars
Black and colored tattoos

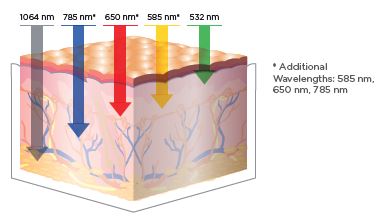

Five Laser Wavelengths

StarWalker® PQX delivers five laser wavelengths to cover the complete absorption spectrum of melanin, oxyhemoglobin and water.

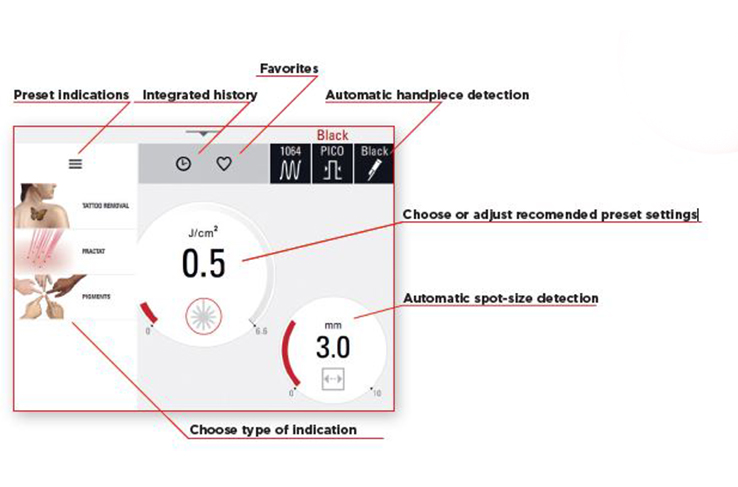

Advanced Technology Made Simple

Advanced and intuitive user interface
User-friendly application wizard with preset treatment parameters
Integrated history of past treatments
Integrated patient database
Suitable for first time users and advanced practitioners

Patented ablative fractional treatments

– Fewer treatments needed

– Shorter treatment time

– Quicker healing

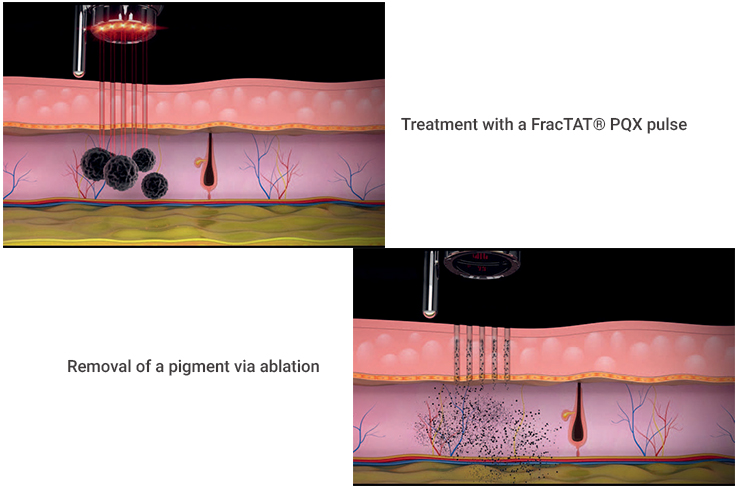

Enhanced generation of photoacoustic shockwaves
Reduced frosting and pressure on surrounding tissue
Direct pigment removal via ablation
Better and quicker healing of fractionated skin

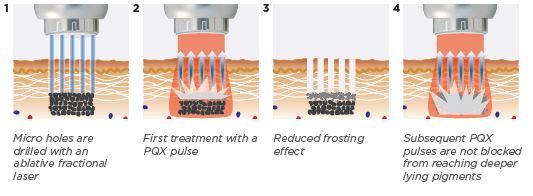

FracTAT® treatment

When the patented Fotona FracTAT® procedure is performed, micro holes are first drilled into the skin using a fractional ablative laser handpiece. The fractional micro holes act as pressure relief ducts through which gasses can escape without building up excessive pressure.

Non-ablative and ablative fractional treatments for:

Rejuvenation

Scars

Pigments

Tattoos

Fractional microscopic lesions are formed within tissues as a result of micro cavitations and plasma formation.
Micro wounds are rapidly healed by the intact surrounding tissue, leaving the skin refreshed, more elastic and with fewer visible wrinkles and scars.

Excellence in Your Hands

All the applications you need, with a complete line of advanced, easy-to-use handpieces

Handpiece	Wavelength	Spotsize	Spot shape
Black & Green	Nd:YAG, KTP	3×3 to 10×10 mm	Square
DuoDot & DuoHigh	Nd:YAG, KTP	1 – 3 mm	Circle
Black F9	Nd:YAG	9×9 mm	Fractional, 81 pixels
Black F5	Nd:YAG	5×5 mm	Fractional, 25 pixels
Green F5	KTP	5×5 mm	Fractional, 25 pixels

Full-beam and fractional handpieces

StarWalker’s full-beam and fractional handpiece technology enables physicians to provide advanced solutions for a broad range of treatments. Fractional handpieces harness a powerful photomechanical effect into tightly focused arrays with high concentrations of energy, while the surrounding tissue remains unaffected by the laser light.
