System Chart

SC-1600

Brand: Nidek – Japan

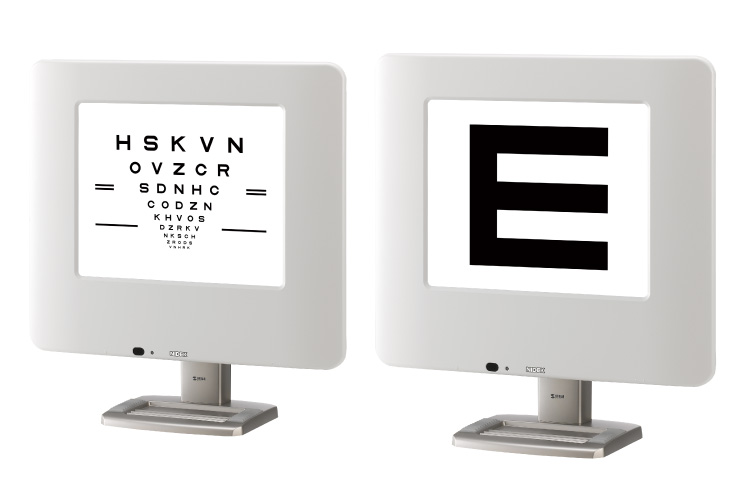

The system chart SC-1600 is a chart presenting device that displays the charts on an LCD. The charts are controlled by an optional remote control or the control box of the NIDEK refractor*1.

In contrast to a chart presenting device which projects the charts from film, the SC-1600 displays the digitally stored chart shapes on the LCD. This makes the following possible.

• The refraction distance can be set in the range of 2.5 m to 6 m in 1 cm increments. The chart size is reduced or enlarged corresponding the set refraction to keep the visual angle
• Charts of a same visual acuity can be switched at random. This prevents erroneous test result from the patient memorizing the
• The 17-inch large-screen LCD allows VA 04 charts to be displayed.
• Images or slide shows may be displayed instead of the
• The charts may be displayed while the contrast is decreased to test the visual acuity under low-contrast conditions.

The SC-1600 is equipped with a power switch to turn the power on or off and function buttons for use with the setting screen. All operations other than those above are performed with the optional remote control or the control box of the refractor.

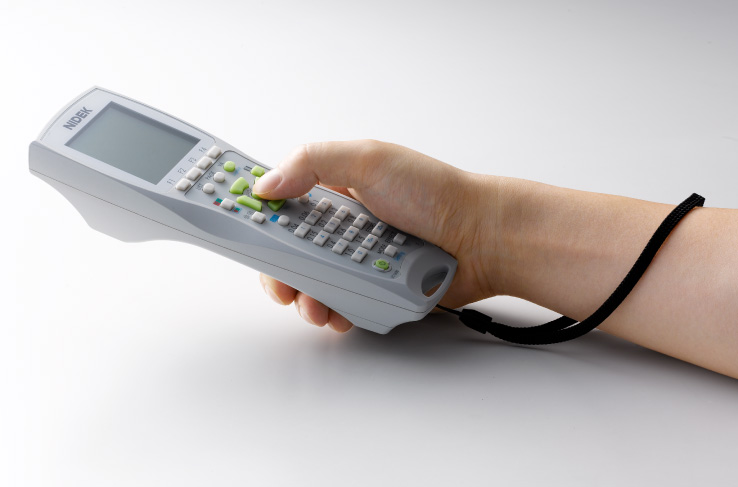

In addition to the function buttons to switch the charts, the remote control has a LCD that shows the operator the chart being presented.
