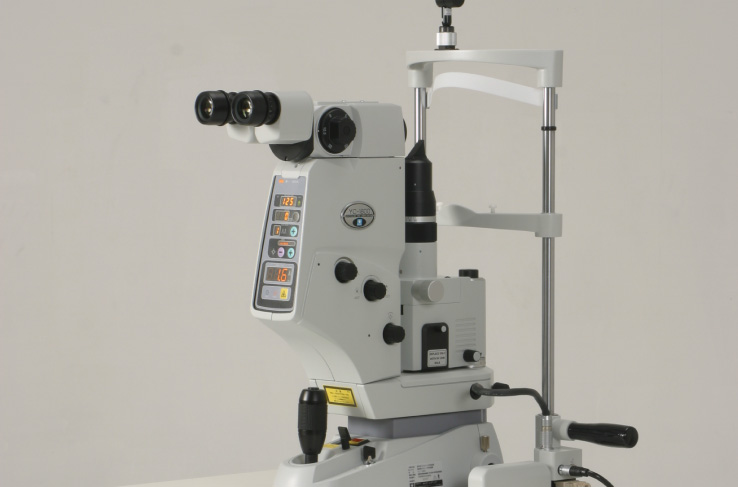

Ophthalmic Yag Laser System
YC-1800
Brand: Nidek – Japan
The small and light body can be easily transported. Compact and slim design also allows greater flexibility in locating your arm rest.
Portable & User-Friendly Design
Improved Operability
The “Smart Switch” (patented) located on the joystick provides high operability, allowing doctors to change parameters (Energy up, Energy down and Ready / Standby*) while holding the joystick. Permits faster and easier operation, and eliminates need to look away from
One-Touch Lock
The YC-1800 can smoothly slide back and forth and around, and the unit can be easily fixed and released at anywhere you like with the one-touch lock, offering high operability with improved safety.
Compact & Slim Design
The small and light body can be easily transported. Compact and slim design also allows greater flexibility in locating your arm rest.
Versatile Combo Lasers
The YC-1800 can be easily connected to NIDEK’s Green Laser Photocoagulator (GYC-1000), allowing treatment of a wider range of patients and indications.
Space requirements are minimized, and the combination adapter (optional) includes the split mirror illumination tower.
Reliability and Safety
Reliable Laser Output
The YC-1800 employs the new technology to control the pulse number under the CPU “D-Pulse” (patented), providing higher stability against environmental conditions and change over time.
Fast Operation
High-speed 3 Hz firing rate offers very practical operation when encountering a moving eye or other patient difficulties. The YC-1800 can treat a wide variety of diseases, and its speed and efficiency allows comfortable operation.
Great Number of Energy Settings
The YC-1800 offers 0.3 to 10 mJ, continuously adjustable in increments of 0.1 mJ, allowing the precise tissue effect.
Super Adjustable Nd:YAG Offset
The YC-1800 can adjust the offset between ±500 microns (25 micron steps) to meet the varied clinical needs.
A different offset can be used for PMMA, silicone or acrylic lenses, and the offset can even be adjusted on the same IOL to compensate for a parallax effect in the periphery. This eliminates the need to manually defocus, permits a clear field of view, and reduces lens pitting.
Safer Rotating Aiming Beam
The dual 635 nm aiming beam offers superior visual sensitivity, which in turn enhances the speed and ease of operation. The 635 nm beam is also safer to human eyes since it achieves the same crisp and sharp intensity of 650 nm or 670 nm beam with half the power output. The YC-1800 has the ability to rotate the dual aiming beams 360º permitting work anywhere in the periphery without clipping the iris.
